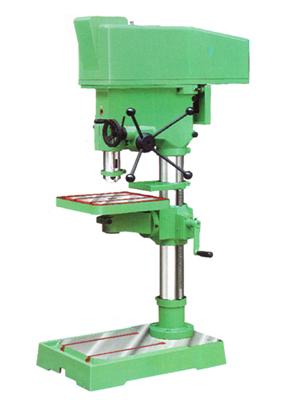

20,25 & 32 M.M. Pillar Type Drilling Machine
| SPECIFICATION: | Model 20-P | Model 25-P | Model 32-P |
| Capacity in mild steel | 20 | 25 | 32 |
| Tapping Capacity | 16 | 20 | 25 |
| No. os spindle Speeds | 90 to 3000 4+4=8 |
104 to 2651 4+4=8 |
80 to 2600 4+4=8 |
| Spindle centre to column | 204 | 260 | 260 |
| Max. travel of spindle | 130 | 160 | 160 |
| Max. dist. spindle nose to table | 660 | 710 | 810 |
| Max. dist. spindle nose to base | 910 | 950 | 1120 |
| Spindle nose | MT-2 | MT-2 | MT-3 |
| Table Size | 260 x 260 | 345 x 345 | 385 x 385 |
| Diameter of Ram | 55 | 72 | 72 |
| Base are machined | 290 x 235 | 295 x 380 | 400 x 400 |
| Diameter of colomn | 74.20 | 90 | 108 |
| Total Height of the Machine | 1530 | 1606 | 1178 |
| H.P. of motor | 1 H.P. | 1 H.P. | 2 H.P. |
| RPM | 1440 | 1440 | 1440 |
| V-Belt | 842 | B-51 | B-56 |
| Net weight | 110 kg. | 190 kgs. | 320 kgs. |
