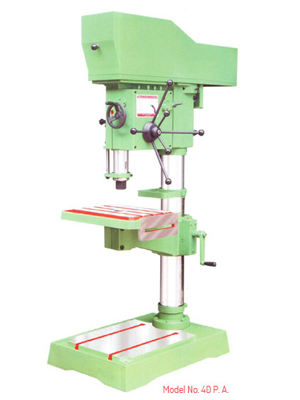

40 M.M. Pillar Type Drilling Machine with Auto & Fine Feed Steel



SPECIFICATION:	Model 38-P.A.	Model 40-P.A.
Capacity in mild steel	38	40
No. os spindle Speeds	80 to 2600	50 to 1225
Number of auto feed	4+4=8 0.05	3+3=6 0.05/0.10/0.15
Spindle centre to column	260	385
Max. travel of spindle	250	250
Max. dist. spindle nose to table	740	685
Max. dist. spindle nose to base	1050	1117
Spindle nose	MT-4	MT-4
Table Size	385 x 385	450 x 610
Diameter of Ram	78	90
Base are machined	350 x 390	700 x 977
Diameter of colomn	108	150
Total Height of the Machine	1778	2130
H.P. of motor	1.5 H.P.	3 H.P.
RPM	1440	960
V-Belt	B-56	B-80
Net weight	360 Kgs.	700 Kgs.
