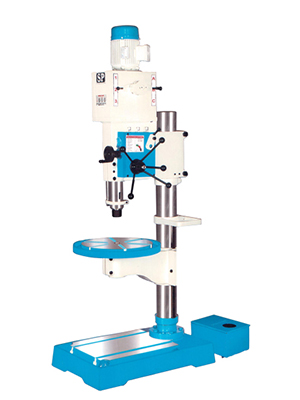

50 m.m. All Geared Auto feed Pillar type Drilling Machine
| SPECIFICATION: | Model 50-PAA | Model 40-PPA |
| Capacity in mild steel | 50 | 40 |
| No. os spindle Speeds | 50 to 1260 -9 | 95 to 1500 -9 |
| Number of auto feed | 0.05 / 0.10 / 0.15 | 0.04 / 0.08 |
| Spindle centre to column | 460 | 316 |
| Max. travel of spindle | 260 | 250 |
| Max. dist. spindle nose to table | 630 | 785 |
| Max. dist. spindle nose to base | 900 | 1150 |
| Spindle nose | MT-5 | MT-4 |
| Table Size | 625 x 465 | 450 x 600 |
| Diameter of Ram | 90 | 78 |
| Base are machined | 760 x 1000 | 450 x 600 |
| Diameter of colomn | 165 | 130 |
| H.P. of motor | 3 H.P. | 2 H.P. |
| RPM | 960 | 960 |
| V-Belt | A-23 | - |
| Net weight | 1000 Kgs. | 575 Kgs. |
