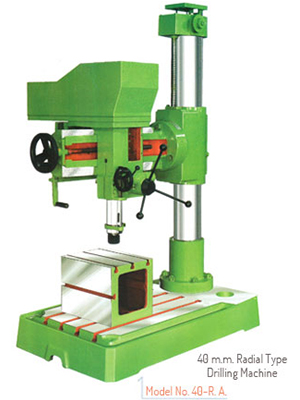

25 & 40 mm Radial Type Drilling Machine
| SPECIFICATION: | Model 25-R | Model 40-R | Model 40-RA |
| Drilling Capacity in mild steel | 25 | 40 | 40 |
| Tapping Capacity | 20 | 32 | 32 |
| No. os spindle Speeds | 90 to 2600 4+4=8 |
50 to 1735 4+4=8 |
50 to 1735 4+4=8 |
| Working area of base | 725 x 600 | 870 x 760 | 870 x760 |
| Dia of column | 127 | 165 | 165 |
| Dia of RAM | 72 | 78 | 78 |
| Spindle travel | 225 | 260 | 260 |
| Spindle nose | MT-3 | MT-4 | MT-4 |
| Max. Min dist. spindle nose to base | 750 to 175 | 925 to 230 | 925 to 230 |
| Max. dist. spindle nose to table | 570 | 620 | 620 |
| Max. dist. spindle center to column | 665 x 270 | 875 x 360 | 875 x 360 |
| Size of Box Table | 205 x 205 x 285 | 305 x 305 x 380 | 305 x 305 x 380 |
| Size of Box base(LxWxH) | 600 x 1000 x 150 | 760 x 1290 x 190 | 760 x 1290 x 190 |
| Overall height of machine | 1420 | 2000 | 2000 |
| Spindle feeb by | Hand. Star Leer & Worm | Hand. Star Level & Warm | Hand Auto 1.5 H.P., 960 RPM |
| Drill Head motor | 1 HP, 1440 RPM | 1.5 HP,960 RPM | 0.5 HP, 1440 RPM |
| Lifting motor | 0.5 HP, 1440 RPM | 0.5 HP,1440 RPM | 0.5 HP, 1440RPM |
| Net weight | 485 Kgs. | 900 Kgs. | 900 Kgs. |
| V-Belt | B-40 | B-47 | A-23 |
| Lifting V-Belt | A-20 | A-23 | 0.04 / 0.08 |
| Number of Autofeed | - | - | - |
